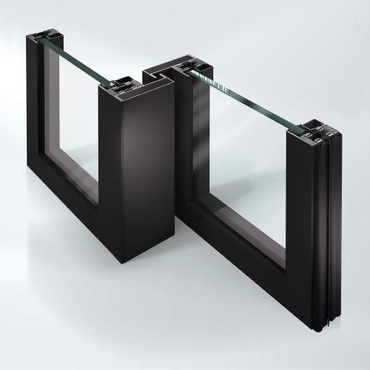

Jansen Janisol 2 EI30 Sliding Door Systems

The comprehensive fire protection sliding door system is reliable in terms of functionally and aesthetically with particularly slender frame profiles. Fire rated successfully in accordance with EN Fire Protection Guidelines, the door profile system guarantees maximum safety even under extreme stress conditions and ensures a variety of design options thanks to the wide range of drive motors and glass types. The variable Janisol 2 EI30 fire protection sliding door is mainly used in barrier-free buildings with increased safety requirements such as shopping malls, stadiums and administrative buildings. With its elegant fire protection profiles, the sliding door is easy to process and it is available as a single double-paneled system and with or without integrated escape door function.​

  • Profiles in steel polished blank or hot-dip galvanized steel
  • Suitable for powder-coating or stove enamel finish
  • Single and double leaf sliding installation, with/without fixed side units/skylight
  • Optionally with or without integrated emergency door (Break-out- or Break-in-function)
  • Very Narrow face width
  • Wide choice of drive products
  • Integrated door closers, screw on or welded strips
  • A variety of options for security and monitoring
  • Installation in heavy construction wall or porous concrete
  • Leaf sizes without integrated emergency door: 1400 x 2500 mm
  • Leaf sizes with integrated emergency door: 1250 x 2500 mm
  • Installation in El30, El60 and El90 partition walls
  • Fire rated in accordance with EN 1634-1
  • Emergency door in accordance with EN 1125 / EN 179
Product Sliding systems
Material Steel
Energy Not insulated ( Uf ≥ 2,0)
  • Standard
Key figures
  • Wärmedämmung Uf in W/m²K: von -1,0 bis -1,0
  • Bautiefe in mm: 60,0
  • Pulver: alle Varianten
  • Nasslack: alle Varianten
  • Feuerschutzklasse: EI30

All approvals, certificates, classifications, technical assessments and other documents can be found at:
