Jansen Janisol HI Door Systems

The tested door system Janisol HI meets the highest insulation standards and is convincing in terms of safety and durability even under extreme stress conditions – as is the case particularly in public buildings with a large public traffic. With triple insulating glass, the doors are easily accessible with excellent thermal transmittance values of Ud 1.0 W/m2K. Thanks to high-tech insulators of glass fiber reinforced polyurethane, the new door system also achieves excellent static values and scores top values in system tests (air/water/wind). With Janisol HI, Jansen sets new standards in terms of contemporary architecture combined with superior thermal insulation.​

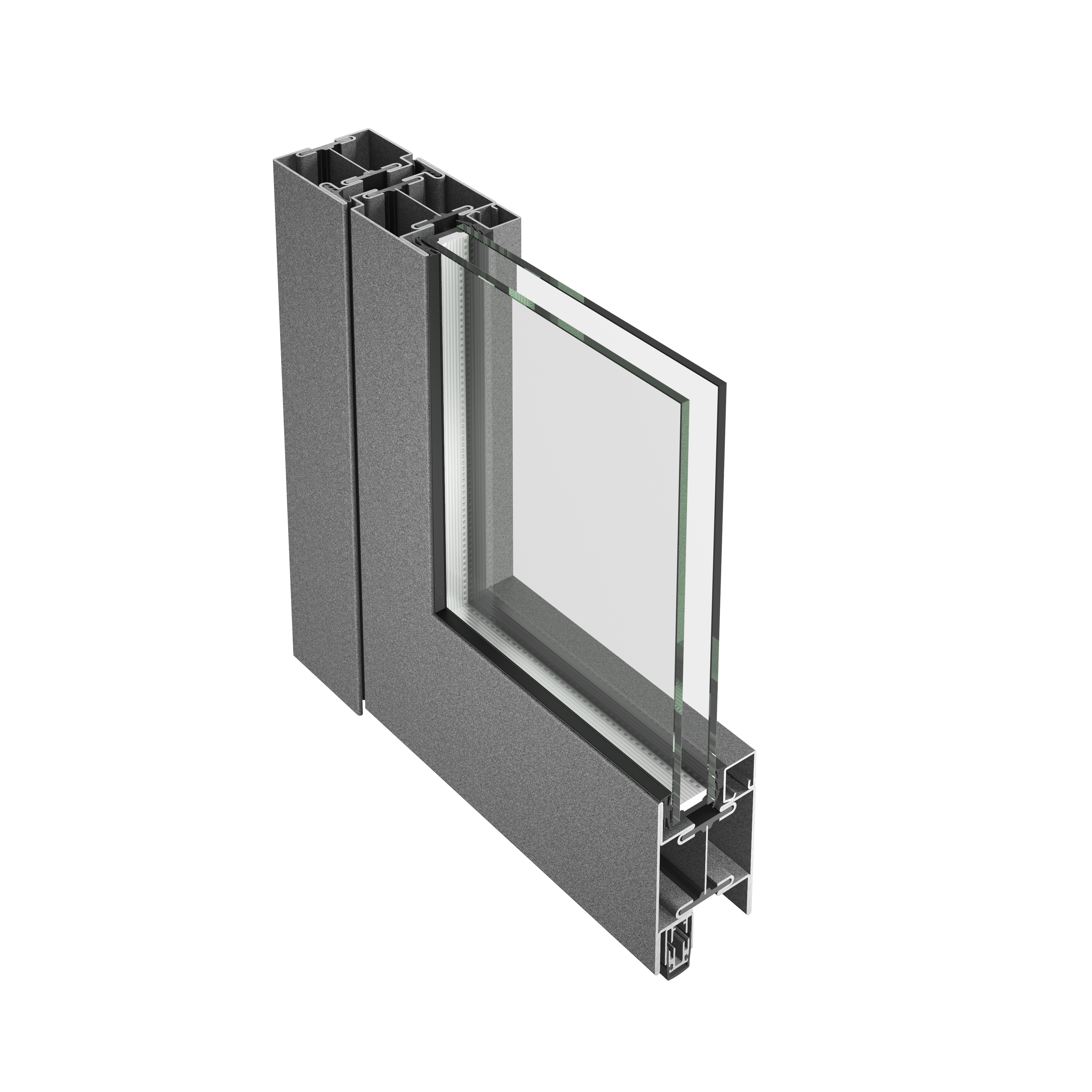

  • Profile made of hot-dip galvanized steel
  • Suitable for powder-coating or stove enamel finish
  • System construction depth 80 mm, flush design
  • Single and double leaf doors, with/without fixed side panels/skylight
  • Welded or screw mounted steel strips
  • Integrated door closers
  • Multi point locks (optionally motor-driven)
  • Designer glazing bead in steel and aluminium
  • Filling unit thicknesses up to 57 mm (triple insulation glass)
  • Excellent static values, narrow face widths
  • Door leaf sizes up to 3.0 m
  • CE marking in accordance with product standard EN 14351-1
  • Driving rain impermeability up to class 6A
  • Air permeability up to class 4 (600 Pa)
  • Resistant against wind load up to class C4 (1600 Pa)
  • Airborne sound insulation up to Rw 45 db
  • Thermal transition coefficient UD > 1.0 W/m2K
  • Shear connection tested in accordance with EN 14024
  • Durable function in accordance with EN 12400 class 8 (1 million closing cycles)
  • Mechanical strength in accordance with EN 1192 class 4
  • Emergency door in accordance with EN 1125 / EN 179
Product Doors
Material Steel
Energy Passiv house suitable (0,8 ≤ Uf ≤ 1,0)
  • Standard
  • Erhöhter Schallschutz Rw 38 - 45 dB
  • Erhöhter Schallschutz größer als 45 dB
Key figures
  • Wärmedämmung Uf in W/m²K von: 0,9
  • Wärmedämmung Ud in W/m2K von: 1,0
  • Schalldämmung Rw,p in dB bis: 45,0
  • Einbruchdämmung RC: von RC2 bis RC3
  • Bautiefe in mm: 80,0
  • Pulver: alle Varianten
  • Nasslack: alle Varianten
  • Gewicht in kg: 230,0
  • Luftdichtheit: 4
  • Schlagregendichtheit: 6A
  • Widerstand gegen Windlast: C4
  • Dauerfunktion: 8
  • Bedienungskräfte: 2
  • mechan. Festigkeit: 4

All approvals, certificates, classifications, technical assessments and other documents can be found at:
